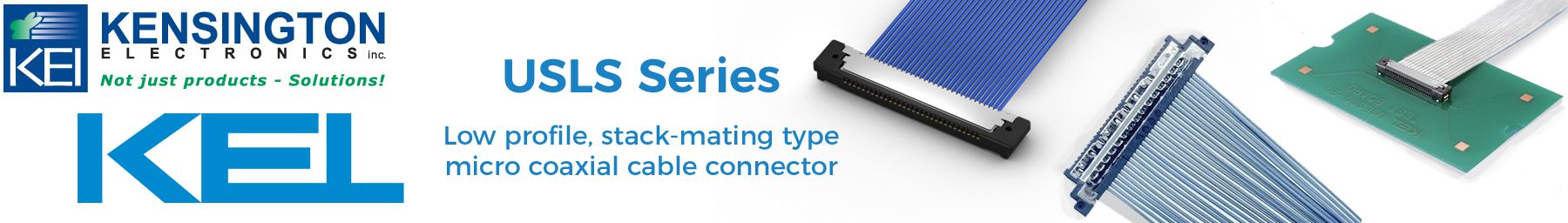

KEL's USLS Series
Computer peripherals are the devices you use to expand your system's functionality and may not be essential for the computers to work but the interference connections may cause can be a real problem.KEL's USLS Series is a low profile, stack mating type micro coaxial cable connector. The board side connector is surrounded by a metal shell to improve noise reduction. Overall, the connector has a 1.65mm stacking height.
Compact Connector with 1.65 mm Stack Height
- In addition to stack mating, bulk pressure welding improves connection reliability and makes it more compact.
- It has an effective mating length of 0.35 mm, a low profile of 1.65 mm stack height, and a 3.05 mm mating width. Applicable for high-density printed circuit boards.
- The cable harness can be passed through thin tube of 4mm diameter.
- Available with 20, 30, or 40 positions
- Lead-free product
Stack Mating Type - Easy Positioning and Excellent Workability during Mating
- Stack Mating Type
- Easy Positioning and Excellent Workability during Mating
- In our USLS series, the common problem of positioning for stack mating type connectors has been resolved with our advanced technology.
- Stack mating provides superior workability.
Imaging
- Improved Product Strength, Transmission Characteristics, Noise Reduction
- The board-side connector is surrounded by a metal shell to improve noise reduction, product strength, and to strengthen grounding.
- Ground terminals are provided at multiple points to improve transmission and EMS characteristics.
- A nickel barrier is placed on the board-side contact to prevent the solder from lifting.
CATALOG
Contact our Sales Department for technical assistance and more information.
